| 23 cm EME SETUP based on Adalm PLUTO | |
|
|
|

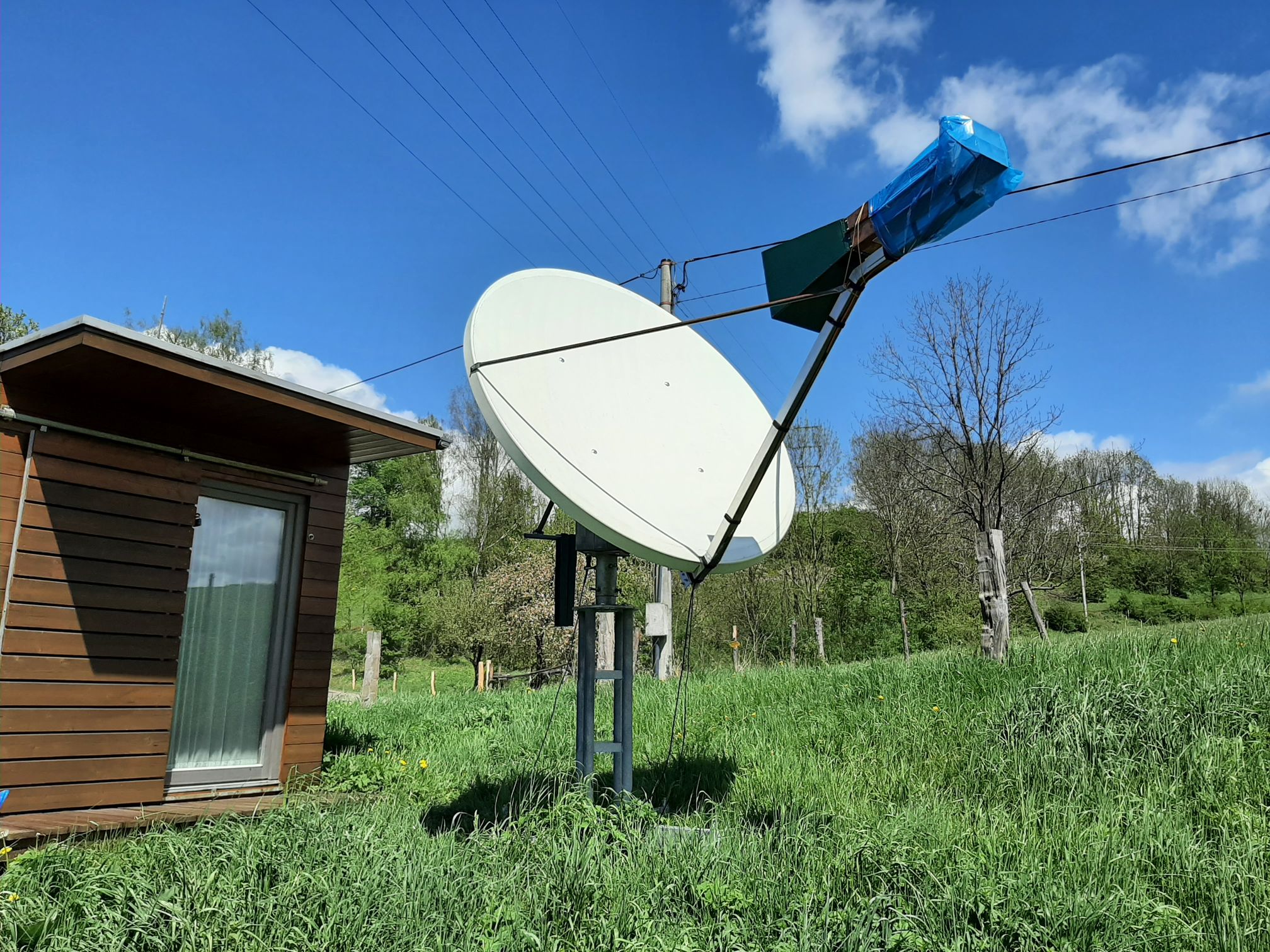

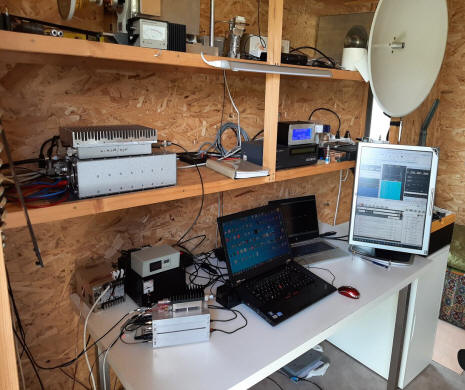

| Workplace and antenna | |
|
|
|

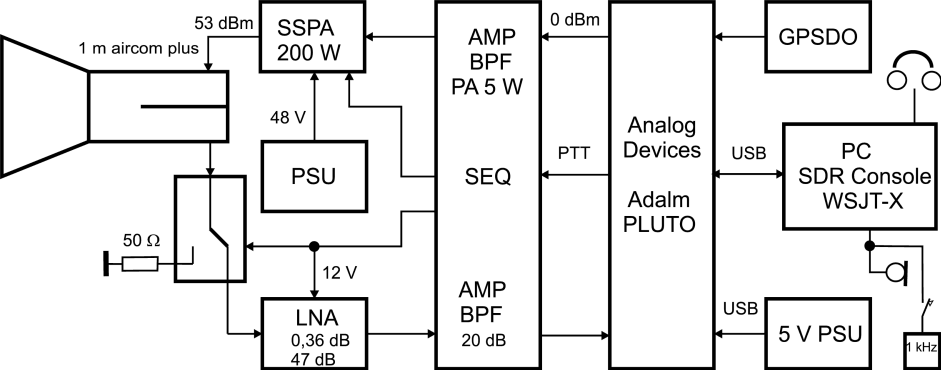

| Block diagram | |
|
|
|

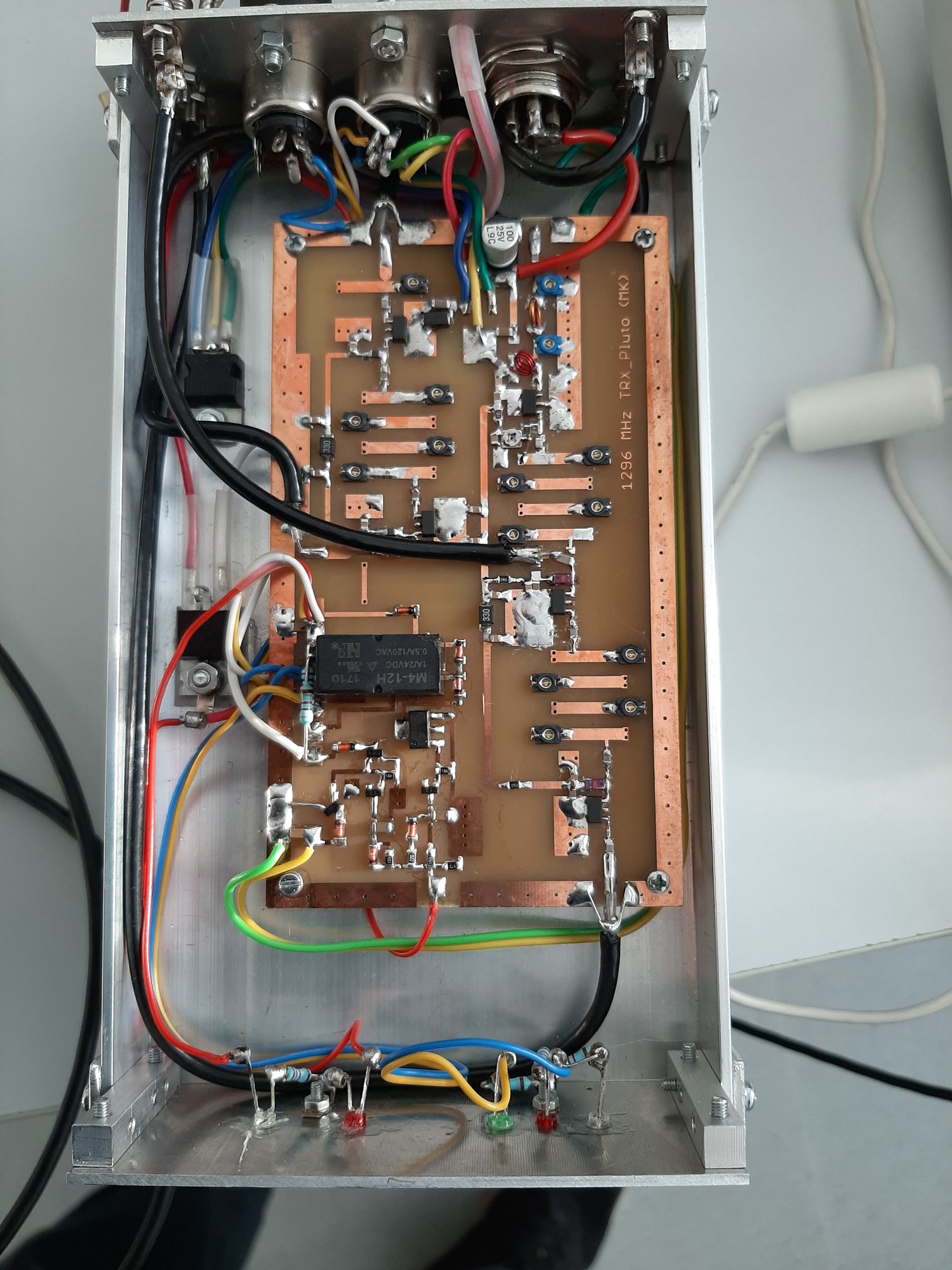

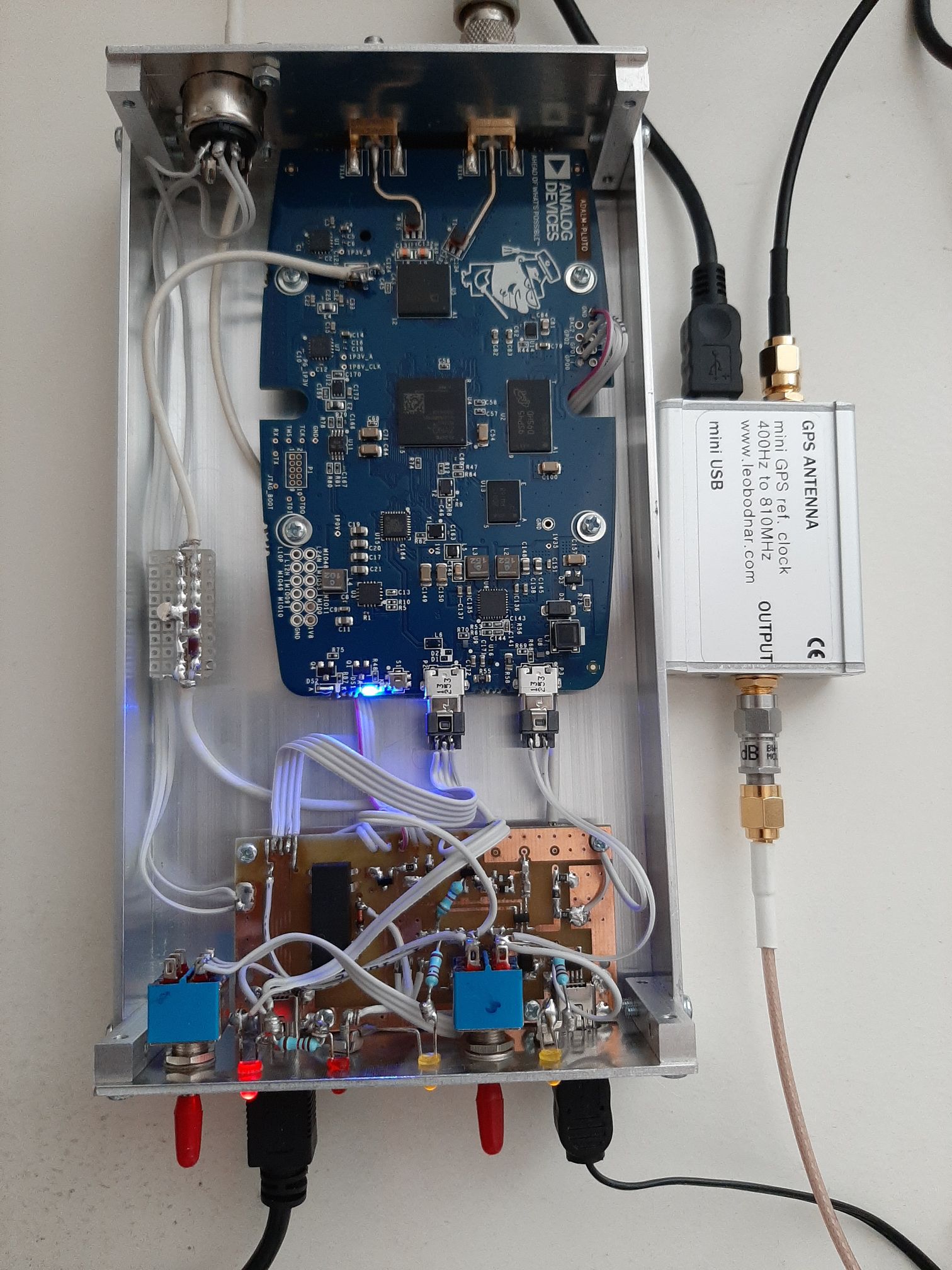

| AdalmPLUTO & GPSDO | FrontEnds & Sequencer |
|
|
|

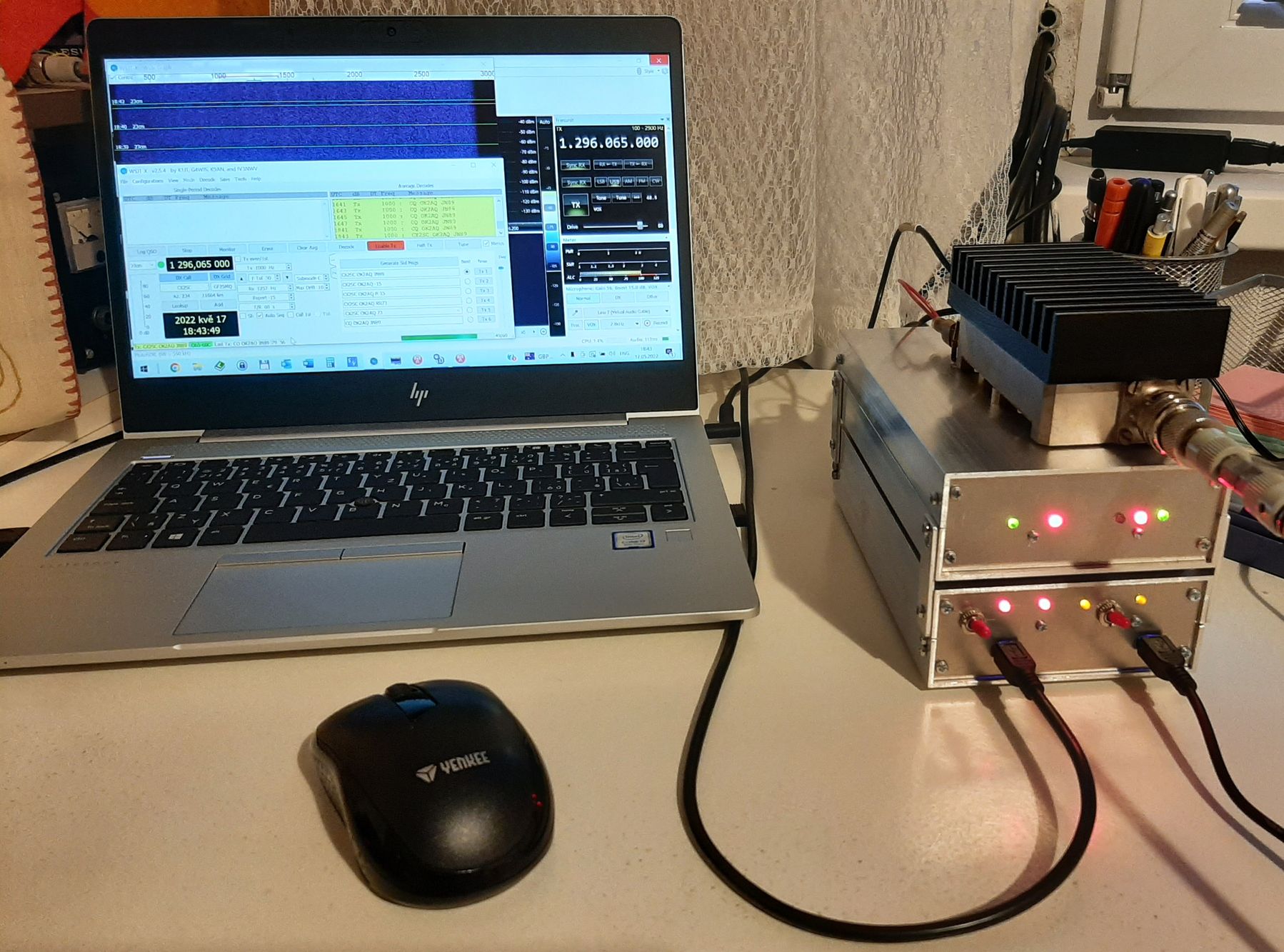

| TRX Adalm PLUTO | |
|
|
|

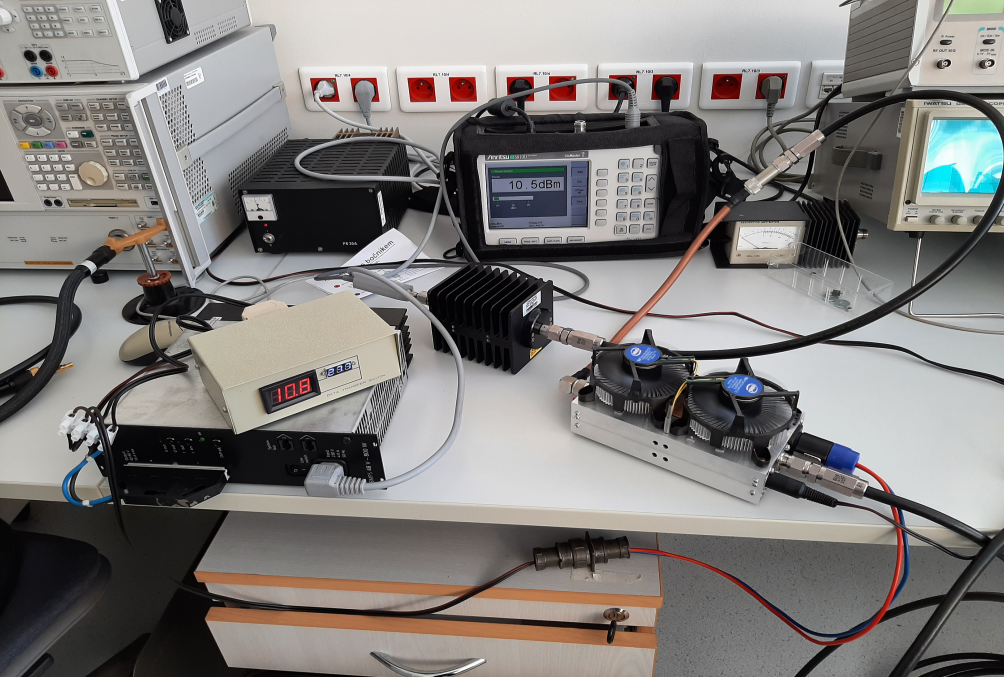

| 100 W SSPA on the test bench | |
|
|
|

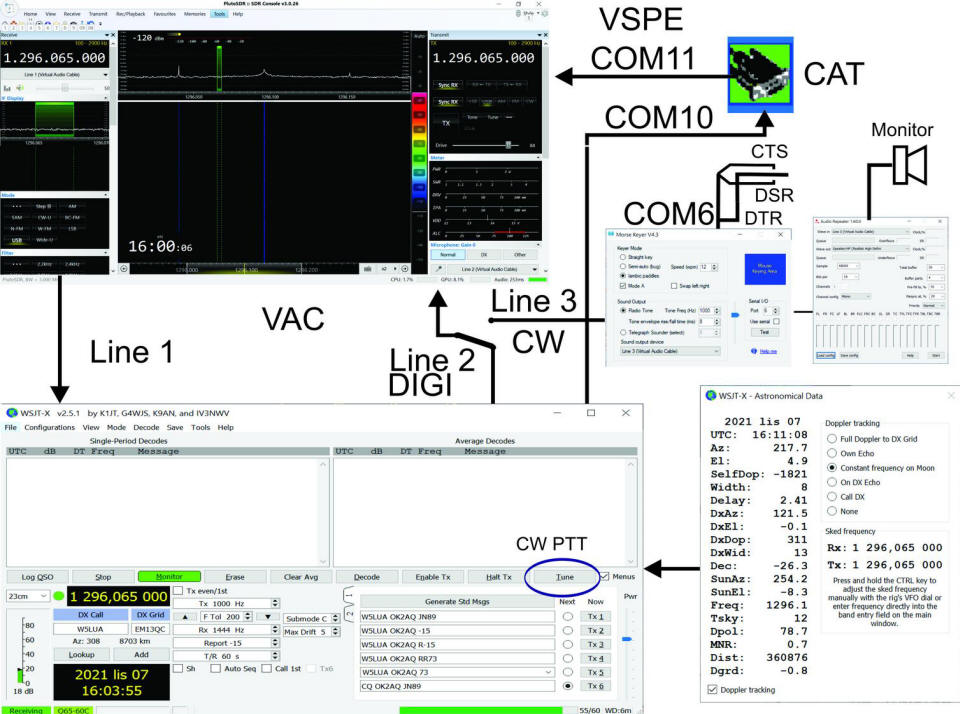

| Software | |
|
|
|

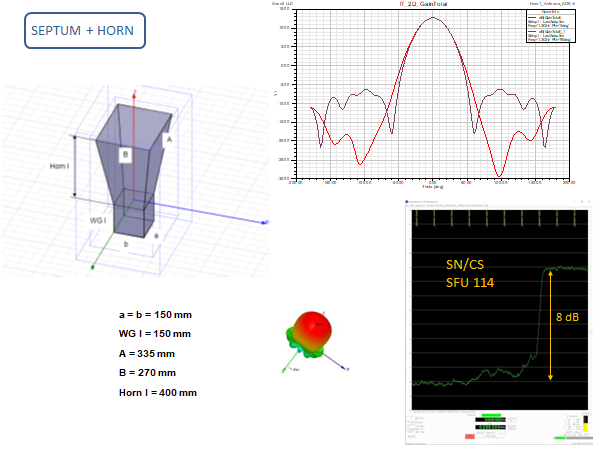

| Septum + Horn | |
|
|
|

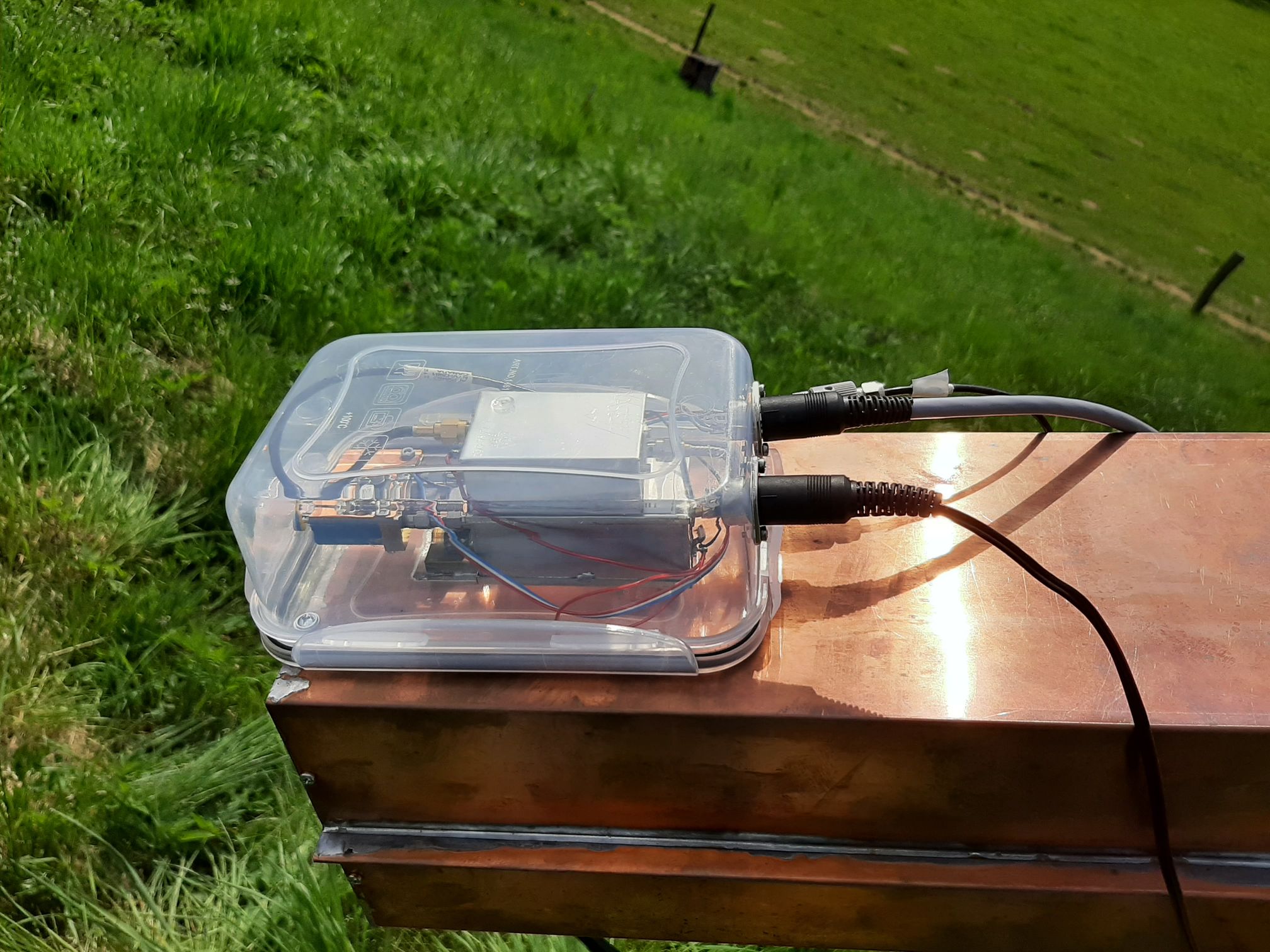

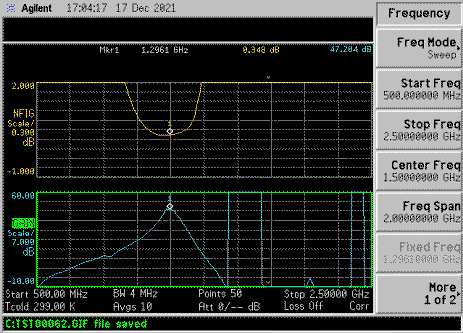

| LNA | LNA N.F. & Gain |
