SNAP
Symbolic Network Analysis Program
(version 3.2)
SNAP is a package for
symbolic analysis of electrical circuits. Symbolic analysis produces the closed
form expression of the transfer function, impedance, or admittance of analog
linear networks. SNAP derives formulas in full-symbolic or semi-symbolic form.

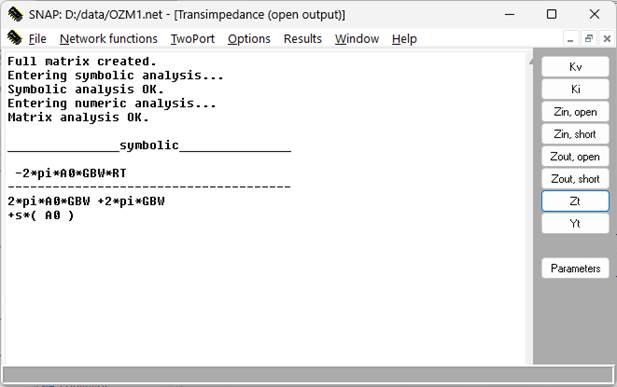

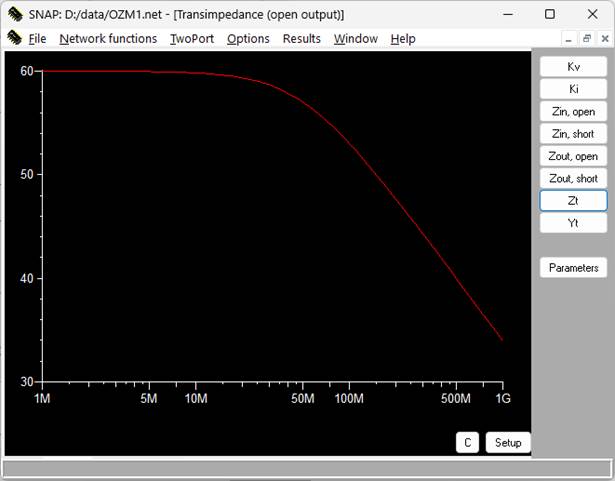

Analysis results can be displayed as text or plotted in frequency domain. The
SNAP package consists of a schematic editor and an independent symbolic
analyzer.
Main features:
- MS-Windows
application
- easy-to-use
schematic editor + independent symbolic analyzer
- symbolic,
numeric or combined reference of circuit variables
- symbolic
and semi-symbolic output
- textual
or graphic output

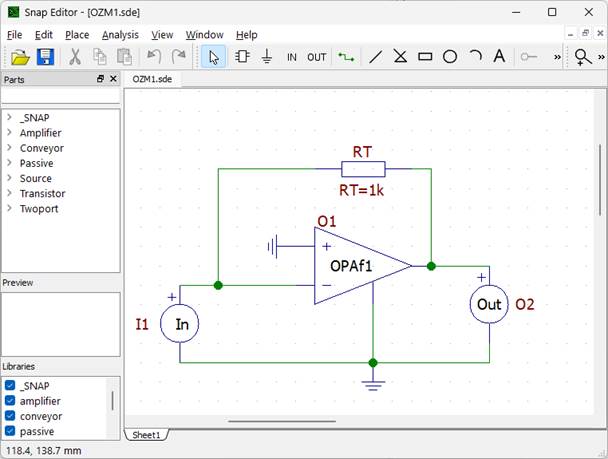

Schematic editor
Symbolic analyzer
SNAP is
free for noncommercial use.
You can download
- the
package Snap3v21install
- short
manual (Czech only) snap3v21.pdf
Please, email any comments
or suggestions to authors.
